Roller Material:    DuPont's Acetal Material

Shafts:    Molded Grivory Material

Shaft Mounting Blocks:    .188” Thick HMWPE

“C” Shaped Frame

   Aluminum:  Custom Extruded, 6063-T6 With 60 Minutes Satin Anodized Finish

Maximum Continuous Length:*  10’

    * Purchased lengths subject to + or - 3/8”

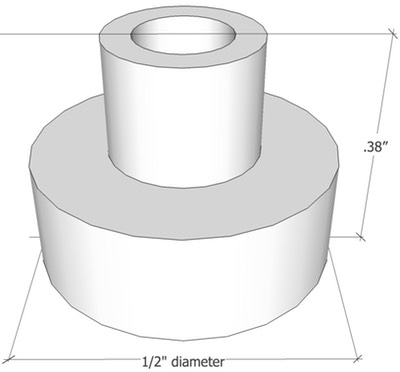

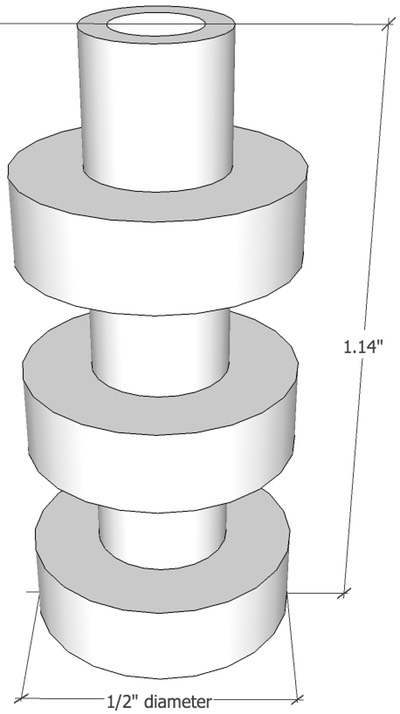

    1/2" Diameter roller with 7/32” radiused convexed edge in .380 height increments

    Two densities (rows per foot) available

    Standard density 28.5 rows/feet = SDR 1/2

    High density 30.5 rows/feet = HDR 1/2

These Vibratory Combiner Rails (VCR) are applicable in all high speed beverage, brewery, container manufacturing, food, liquor, pharmaceutical, oil or other similar cylindrical container handling applications.

Series SDR 1/2” has 28 rows per foot

SDR 1/2” is recommended for container diameters of 2” through 3 1/2”

Series HDR 1/2” has 30.5 rows per foot

HDR 1/2” is recommended for container diameters of 1 3/8” through 3”

Available Rail Heights:   1.68” & 2.05" Overall Height
