Roller Material:    DuPont's Acetal Material

Shafts:    Molded Grivory Material

Shaft Mounting Blocks:    .188” Thick HMWPE

“C” Shaped Frame - 1.8” Overall Height

   Aluminum:  Custom Extruded, 6063-T6 With 60 Minutes Satin Anodized Finish

Maximum Continuous Length:*  10’

    * Purchased lengths subject to + or - 3/8”

These Vibratory Combiner Rails (VCR) are applicable in all high speed beverage, brewery, container manufacturing, food, liquor, pharmaceutical, oil or other similar cylindrical container handling applications.

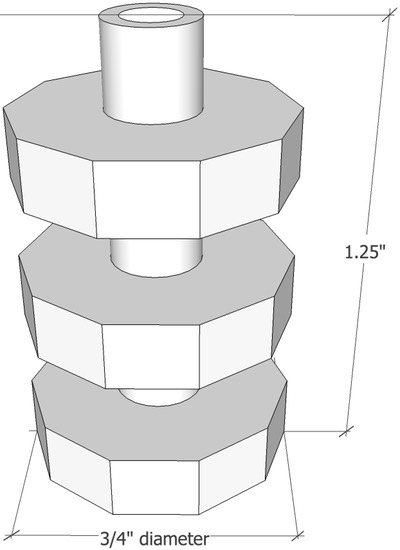

Series D 3/4” has 22.5 rows per foot

D 3/4” is recommended for container diameters of 2 3/4” through 5”

Available Rail Heights:   1.8” Overall Height
